the 5000 series cubicle track – drawing

HARDWARE

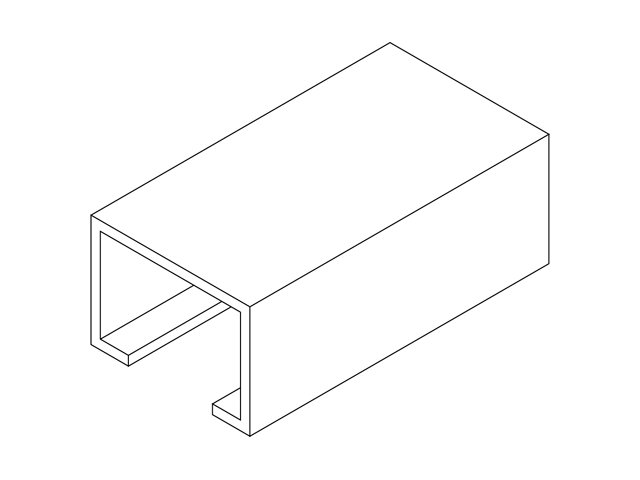

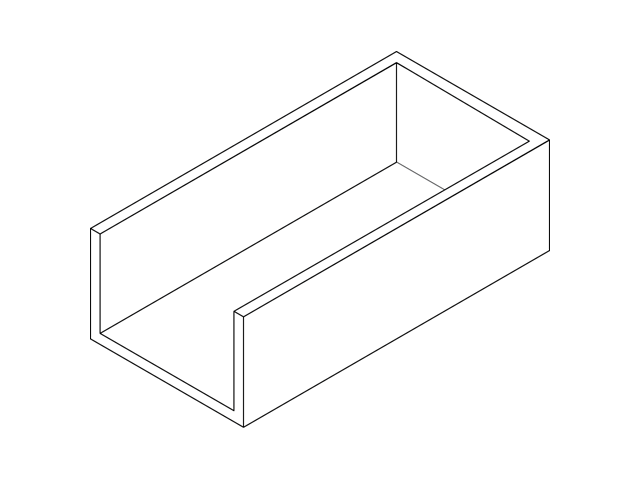

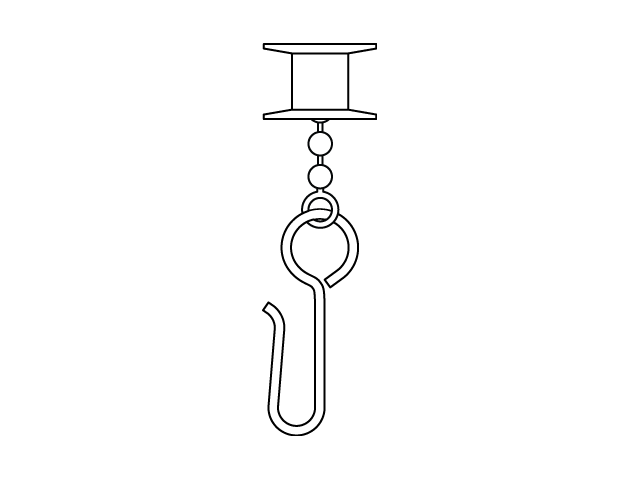

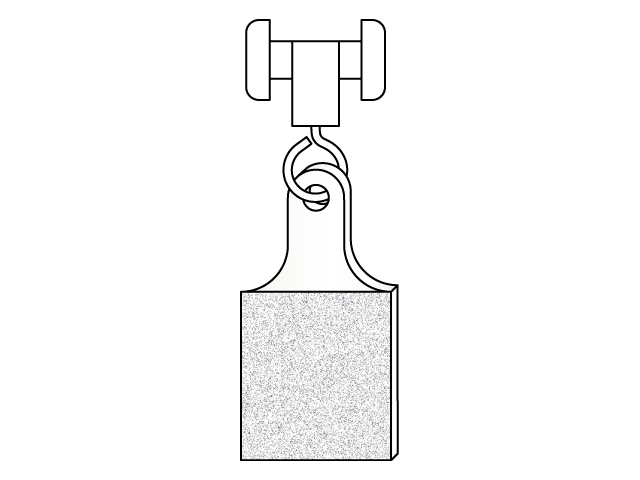

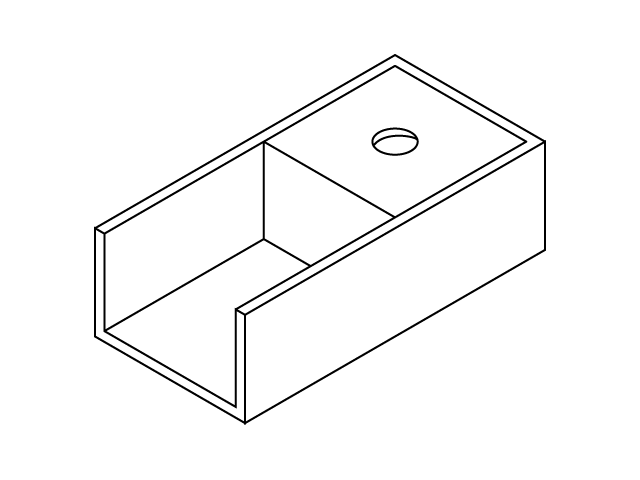

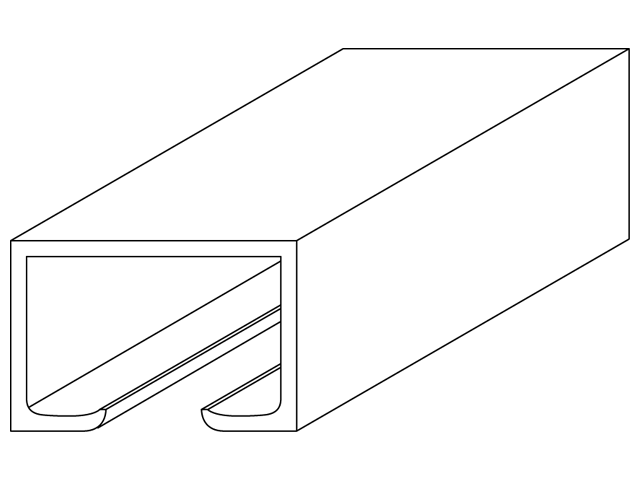

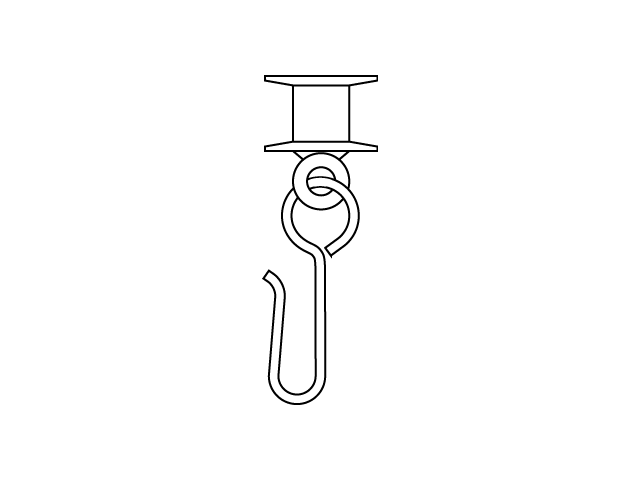

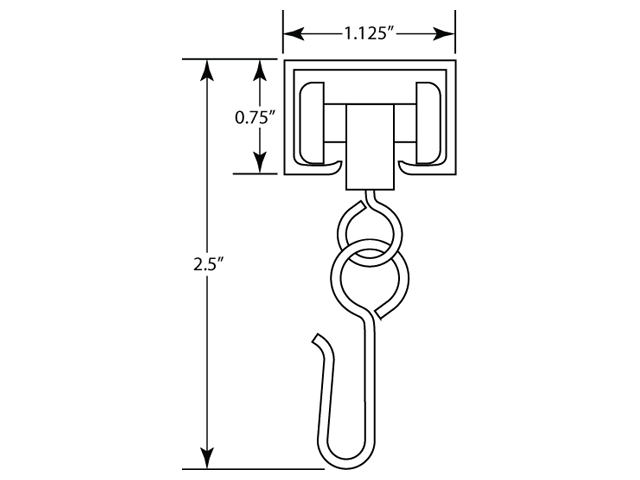

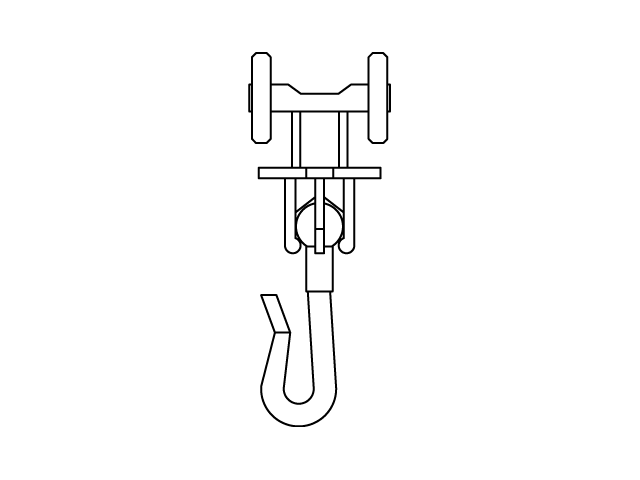

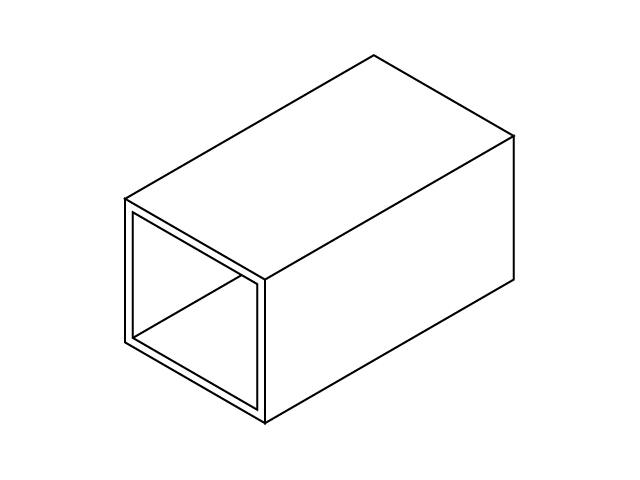

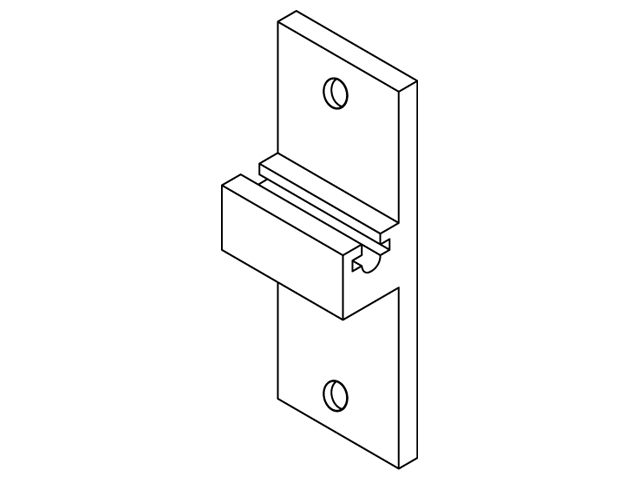

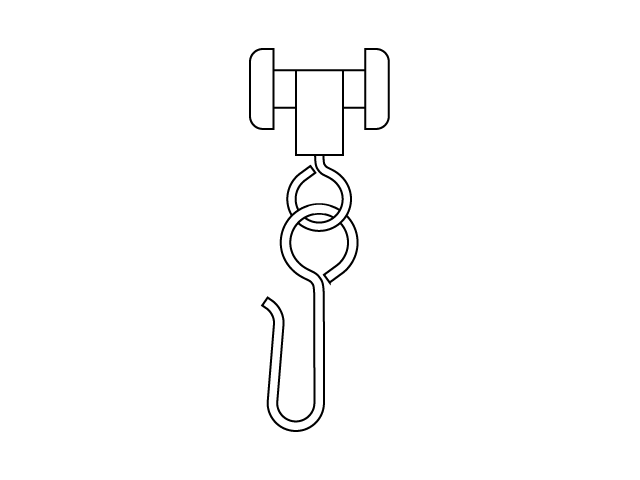

Diamond Drapery’s 5000 Series cubicle track provides excellent reliability and the utmost design flexibility for healthcare installations found in hospitals, nursing homes, medical offices, laboratories, surgical centers, mental health facilities and other treatment centers that rely on patient privacy curtains and draperies. The cubicle curtain tracks are made of extruded anodized aluminum in a clear finish. Designed to meet your individualized application, the tracks are available in straight lengths, 90-degree bends or 45-degree bends. Custom bends also are available on request. Specifically-designed and easily maintained nylon carriers have swivel eye-hooks designed to roll freely inside the track channel. Each track is supplied with a pair of end stops, one of which has a dropout piece allowing for carriers to be exchanged without removing the track from the ceiling. Challenging ceilings with obstructions, such as light fixtures, vents or sloped areas, are easily accommodated by the suspension of three-quarter-inch tubing and components. This adaptation method allows the track to be installed below the ceiling at a fixed height for smooth operation.

Photo | Drawing
